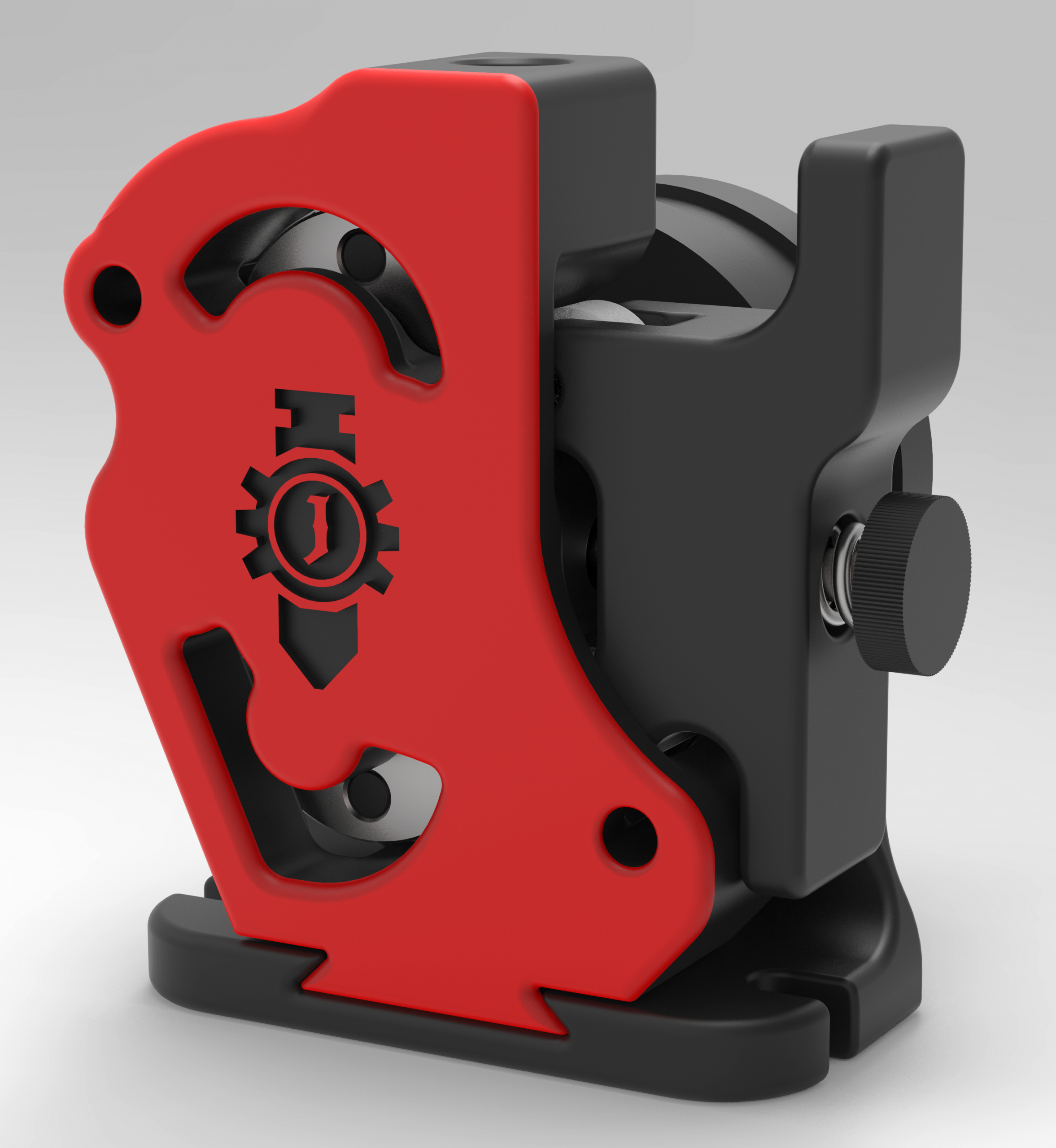

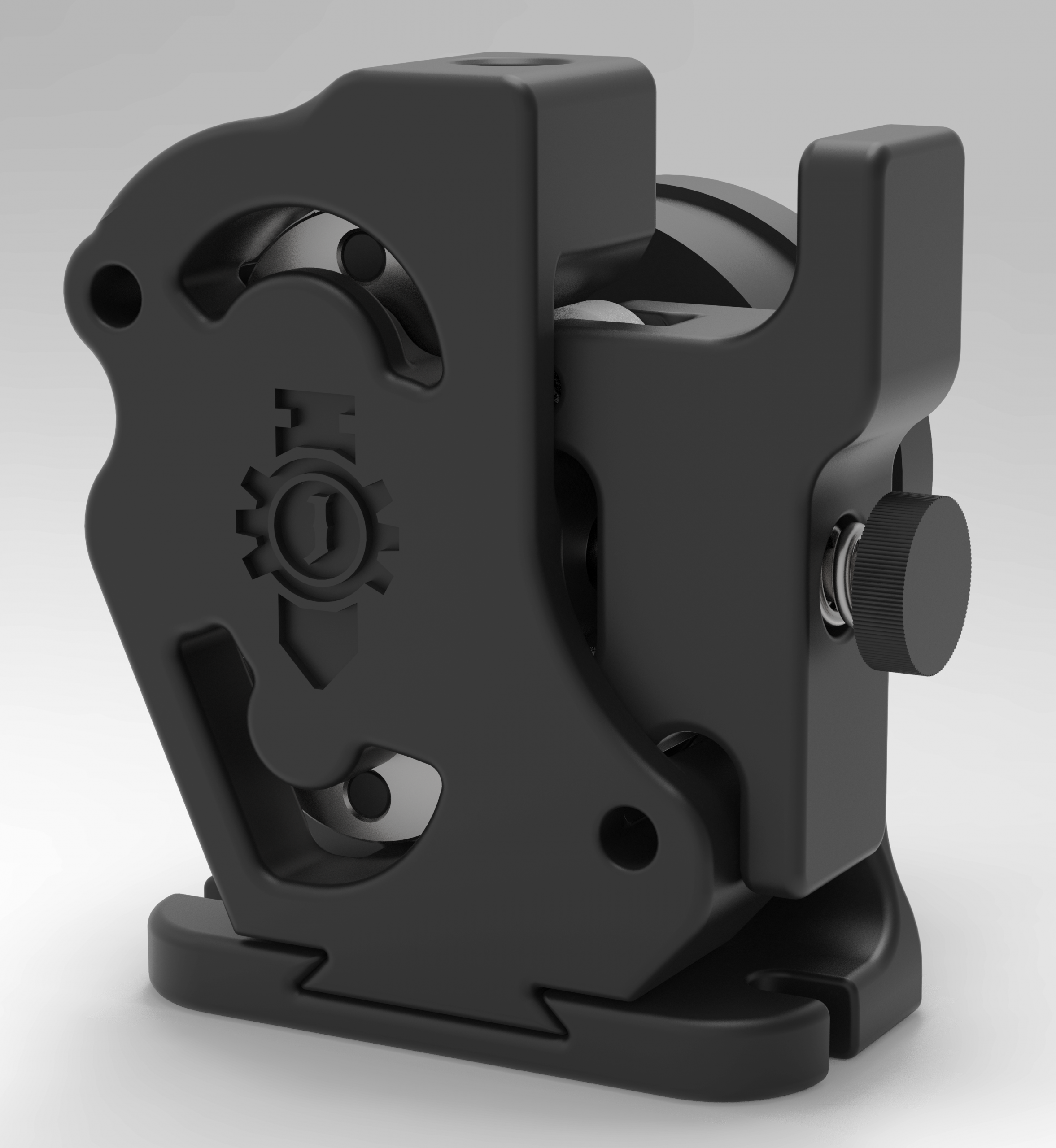

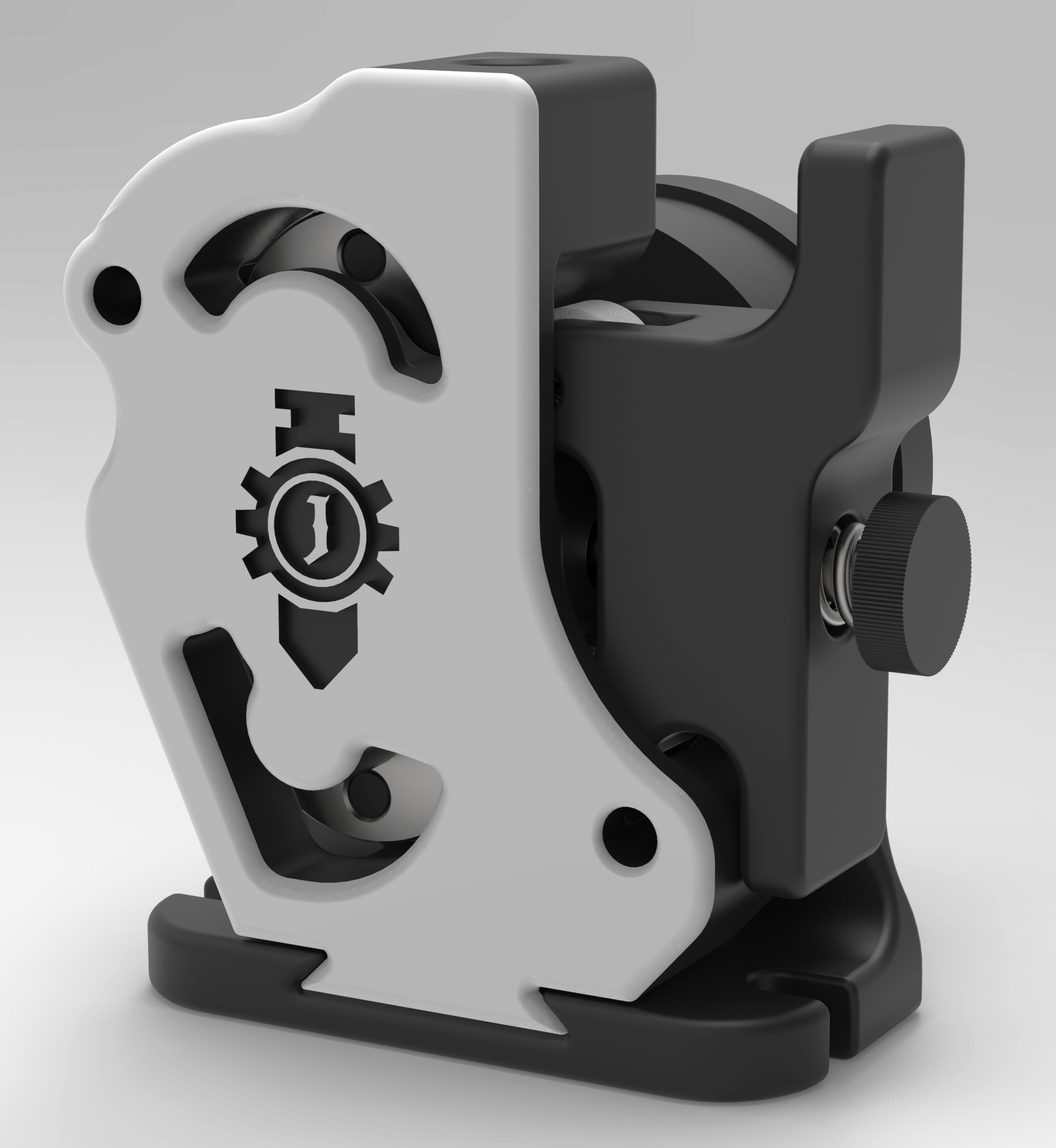

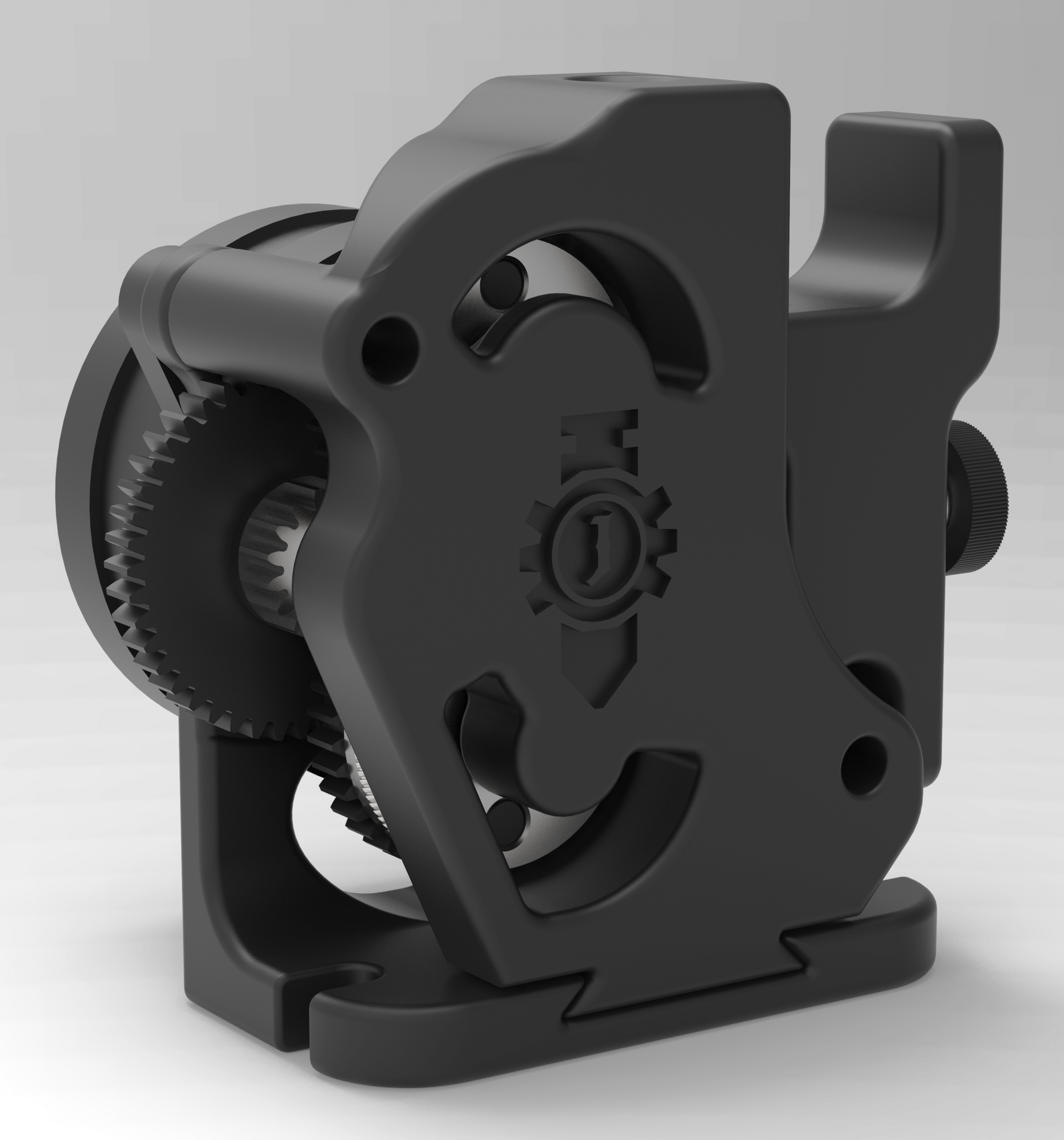

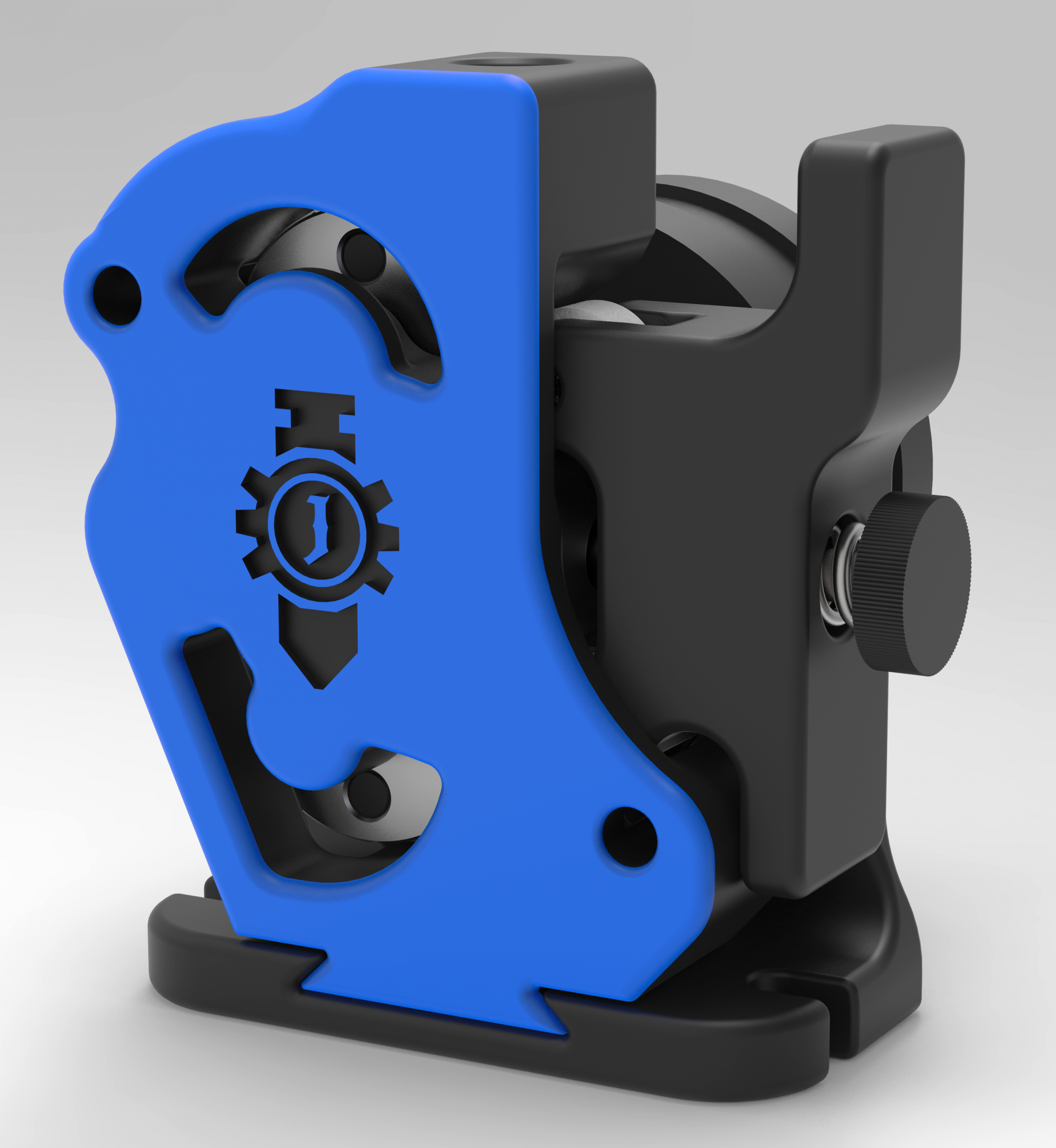

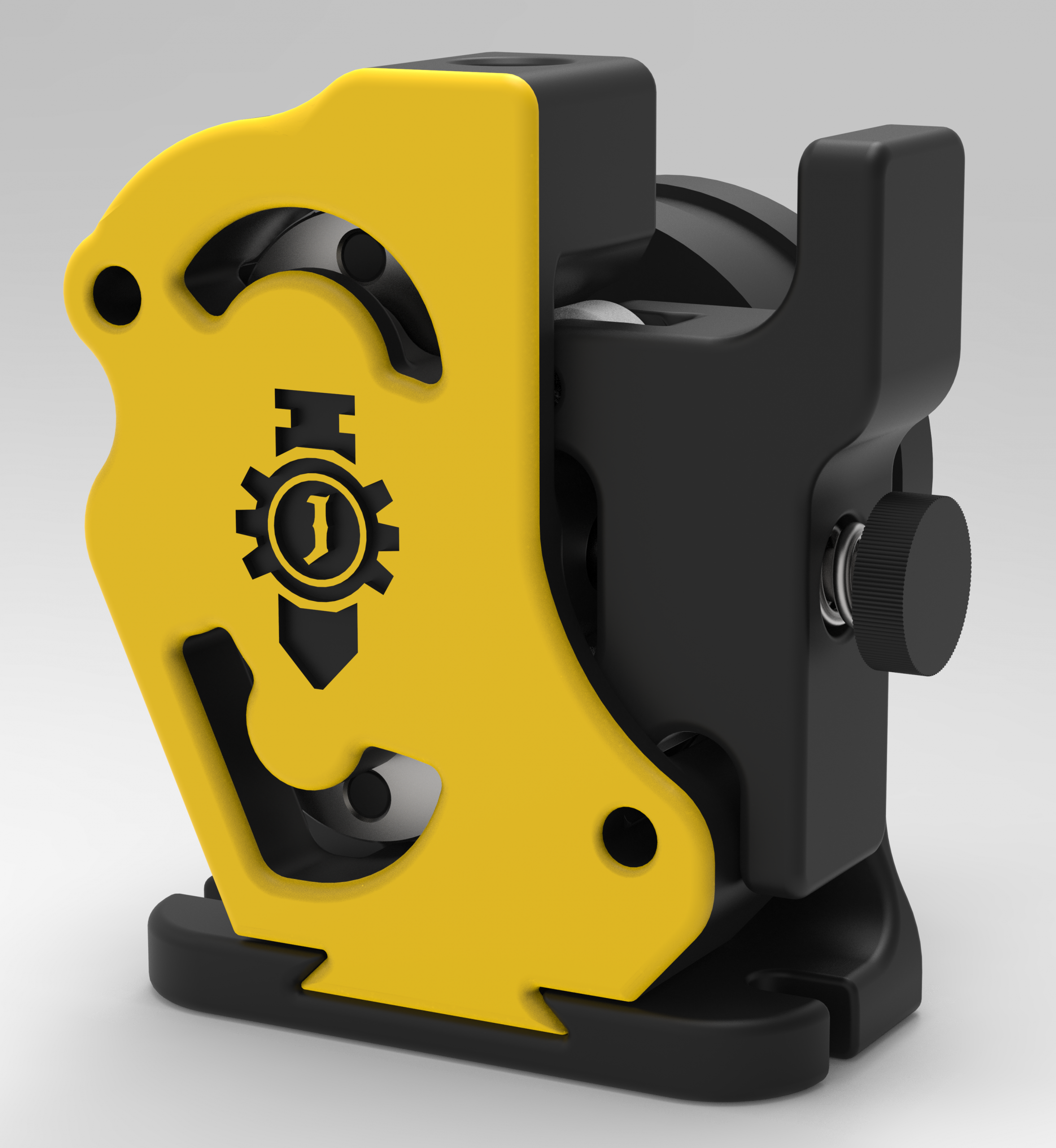

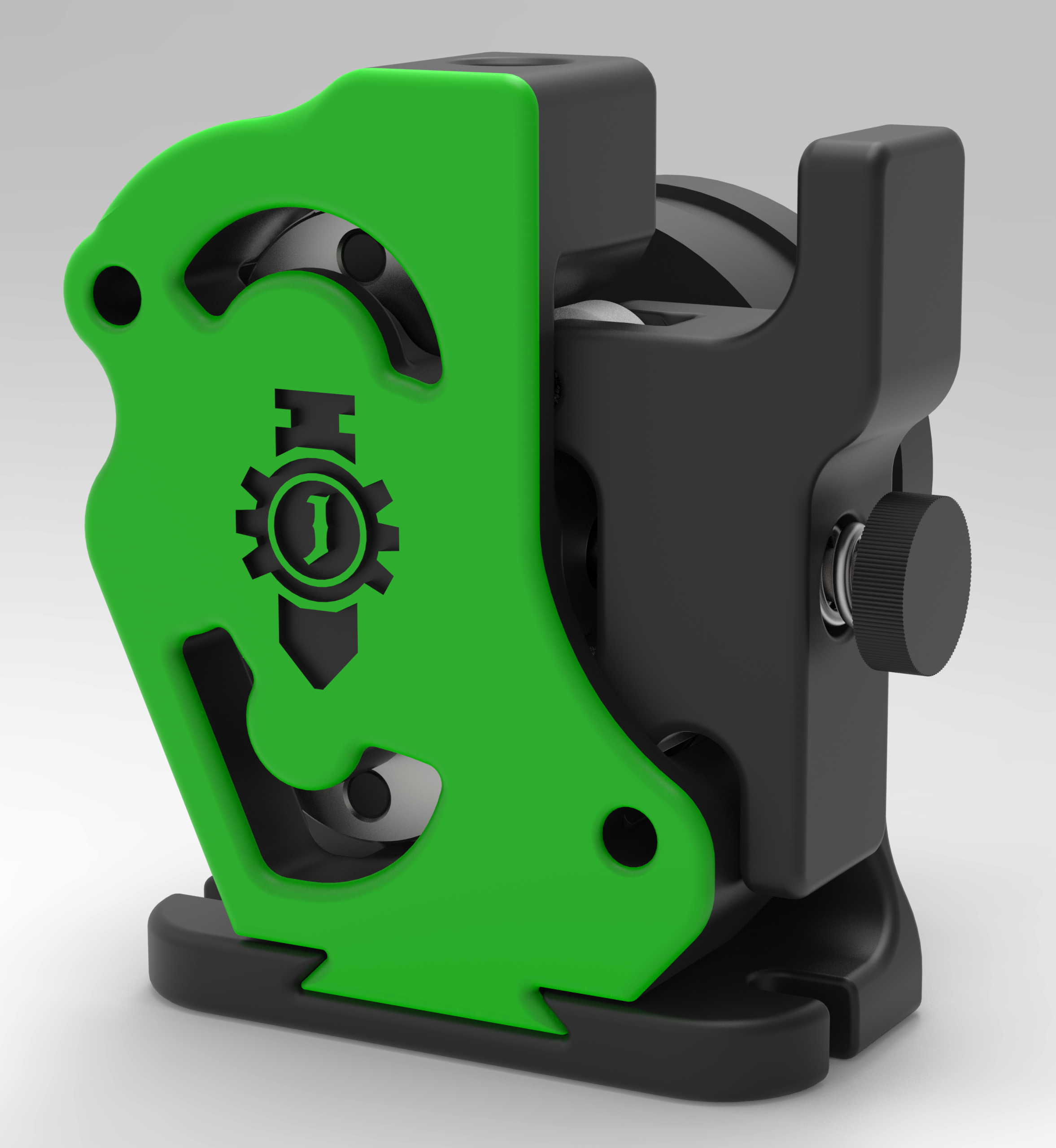

MDX Extruder

Description

The MDX is a powerful extruder. Boasting a 9.5:1 gear ratio and dual 18mm hobbed drive gears in series, this extruder provides plenty of torque and even more grip for extra pushing power.

• 9.5:1 gear ratio
• Dual 18mm hobbed gears in series for double the gripping power
• Ball bearing idlers on the tension arm reduce the amount of deformation on the filament
• Orbiter V2.0 mounting pattern
• Parts are printed out of quality ABS material for use in heated enclosures up to 70C
• Weight: 52g; 137g with motor

Motor

• Brand: Moons
• Model: CSE14HRA1L410A-01
• Item: NEMA 14 36 Stepper Motor
• Step: approx 1.8degree
• Phase resistance: 1.9ohm
• Phase Inductance: approx 1.4mH
• Rated Voltage: DC1.9V

Klipper Settings:

• Rotation_Distance: 6.250
• Run_current: 0.700
